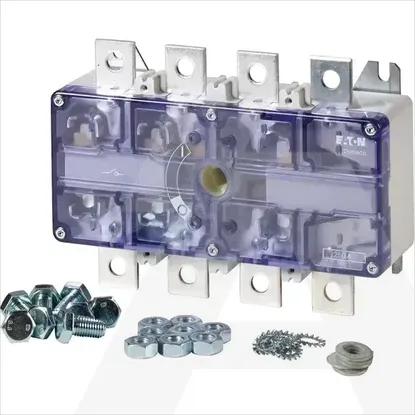

DMV-250N/1
Code: 1202234
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchNo
Version as maintenance-/service switchNo
Version as safety switchNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V250A
Number of switches1
Version as emergency stop installationYes
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V250A
Rated operation power at AC-23, 400 V140kW
Rated operation power at AC-3, 400 V0kW
Rated short-time withstand current lcw12kA
Number of poles4
Switching power at 400 V140kW
Conditioned rated short-circuit current Iq100kA
Voltage release optionalNo
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu250A
Device constructionComplete device in housing
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for floor mountingYes
Motor drive optionalNo
Degree of protection (IP), front sideIP20
With pre-assembled cablingNo
Height75mm
Type of electrical connection of main circuitScrew connection
Colour control elementOther
Type of control elementOther
InterlockableNo
Degree of protection (NEMA)Other
Depth206mm
Width185mm
