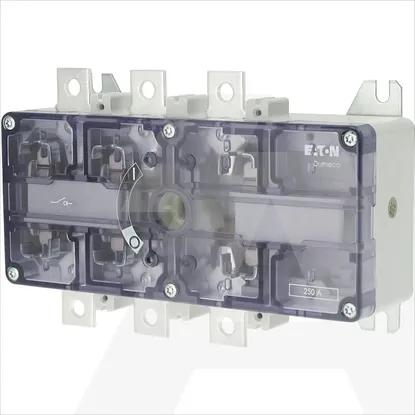

DMV-250N/3
Code: 1202236
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as safety switchNo
Rated permanent current Iu250A
Version as main switchNo
Version as reversing switchNo
Version as maintenance-/service switchNo
Rated permanent current at AC-21, 400 V250A
Rated short-time withstand current lcw12kA
Rated permanent current at AC-23, 400 V250A
Max. rated operation voltage Ue AC690V
Number of switches1
Version as emergency stop installationYes
Rated operation power at AC-3, 400 V0kW
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V140kW
Switching power at 400 V140kW
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Suitable for front mounting centreNo
Conditioned rated short-circuit current Iq100kA
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as normally closed contact0
Number of poles3
Suitable for floor mountingYes
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Motor drive optionalNo
Suitable for distribution board installationNo
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Type of control elementOther
Colour control elementOther
Width185mm
Height75mm
Depth206mm
Degree of protection (NEMA)Other
InterlockableNo
Degree of protection (IP), front sideIP20
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
