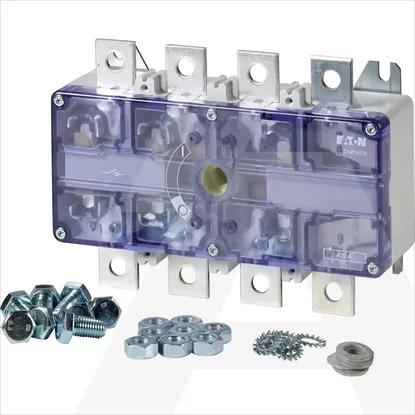

DMV-400N/1
Code: 1202247
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchNo
Rated operation power at AC-3, 400 V0kW
Version as safety switchNo
Rated permanent current Iu400A
Version as reversing switchNo
Rated short-time withstand current lcw12kA
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq100kA
Version as maintenance-/service switchNo
Version as emergency stop installationYes
Suitable for floor mountingYes
Device constructionComplete device in housing
Motor drive integratedNo
Number of switches1
Rated permanent current at AC-23, 400 V333A
Suitable for front mounting 4-holeNo
Number of poles4
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Voltage release optionalNo
Suitable for front mounting centreNo
Switching power at 400 V180kW
Number of auxiliary contacts as change-over contact0
Rated permanent current at AC-21, 400 V400A
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V180kW
Type of control elementOther
Height75mm
Degree of protection (IP), front sideIP20
InterlockableNo
Width185mm
Colour control elementOther
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Depth206mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
