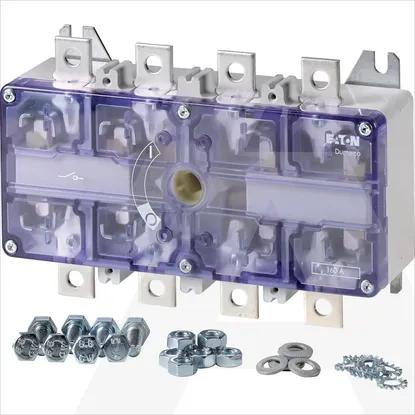

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth180mm
Width210mm
Height80mm
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally closed contact0
Number of switches1
Conditioned rated short-circuit current Iq100kA
Number of auxiliary contacts as change-over contact0
InterlockableNo
Degree of protection (IP), front sideIP20
Rated permanent current Iu160A
Number of poles3
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Version as main switchNo
Version as emergency stop installationYes
Type of electrical connection of main circuitScrew connection
Version as maintenance-/service switchNo
Colour control elementOther
Suitable for front mounting centreNo
Version as safety switchNo
Motor drive optionalNo
Rated operation power at AC-23, 400 V90kW
Rated short-time withstand current lcw12kA
Suitable for floor mountingYes
Version as reversing switchNo
Rated permanent current at AC-21, 400 V160A
Suitable for distribution board installationNo
Type of control elementOther
Suitable for intermediate mountingNo
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V160A
Device constructionComplete device in housing
Switching power at 400 V90kW
Motor drive integratedNo
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
