Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Width140mm
Height105mm
Rated operation power at AC-3, 400 V30kW
Depth195mm
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq15kA
Rated permanent current Iu100A
Number of poles3
Degree of protection (IP), front sideIP20
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Number of switches2
Version as main switchNo
InterlockableNo
Rated operation power at AC-23, 400 V37kW
Suitable for front mounting 4-holeNo
Type of control elementOther
Version as emergency stop installationNo
Suitable for front mounting centreNo
Colour control elementOther
Motor drive integratedNo
Version as safety switchNo
Suitable for distribution board installationNo
Suitable for floor mountingNo
Rated short-time withstand current lcw1.85kA
Version as maintenance-/service switchNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Switching power at 400 V-kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V100A
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

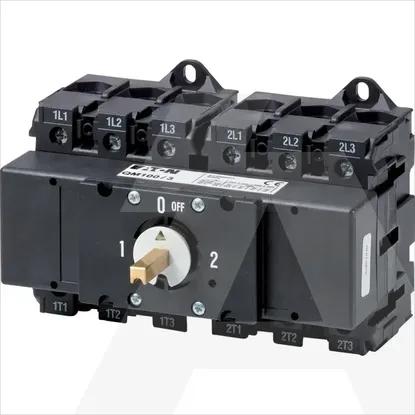

QM100/3
