Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width10.7mm
Height14.2mm
Depth19.5mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally closed contact0
Number of poles4
Rated permanent current Iu100A
Rated operating voltage690 - 690V
InterlockableNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Degree of protection (IP), front sideIP20
Number of switches2
Suitable for floor mountingNo
Version as main switchNo
Type of control elementOther
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw1.85kA
Rated operation power at AC-23, 400 V37kW
Colour control elementOther
Version as safety switchNo
Suitable for intermediate mountingNo
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq15kA
Suitable for distribution board installationNo
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V100A
Degree of protection (NEMA)Other
Version as reversing switchNo
Switching power at 400 V-kW
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V-A
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

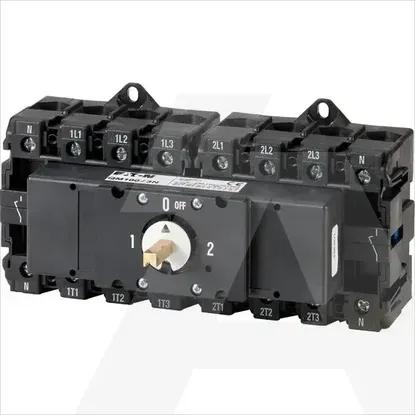

QM100/3N
