Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •EATON
Technical specifications
Width125mm
Height90mm
Depth125mm
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu80A
Number of poles6
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq15kA
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Number of switches2
InterlockableNo
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Type of control elementOther
Version as main switchNo
Version as safety switchNo
Version as maintenance-/service switchNo
Rated operation power at AC-23, 400 V37kW
Rated short-time withstand current lcw1.85kA
Colour control elementOther
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V100A
Switching power at 400 V-kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Suitable for floor mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

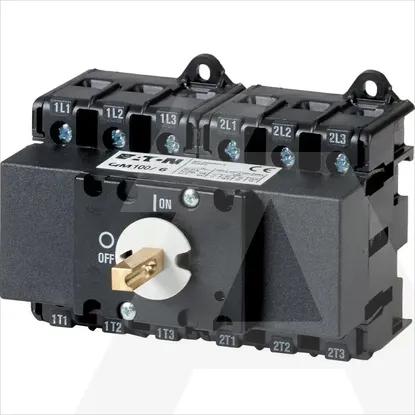

QM100/6
