Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth200mm
Rated operation power at AC-3, 400 V30kW
Width100mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Height140mm
Rated permanent current Iu80A
Degree of protection (IP), front sideIP20
Number of poles8
Number of switches2
Number of auxiliary contacts as change-over contact0
InterlockableNo
Rated operation power at AC-23, 400 V37kW
Version as maintenance-/service switchNo
Colour control elementOther
Motor drive integratedNo
Version as main switchNo
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreNo
Suitable for floor mountingNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Type of control elementOther
Suitable for distribution board installationNo
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Rated short-time withstand current lcw1.85kA
Conditioned rated short-circuit current Iq15kA
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Switching power at 400 V-kW
With pre-assembled cablingNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V-A
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V100A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

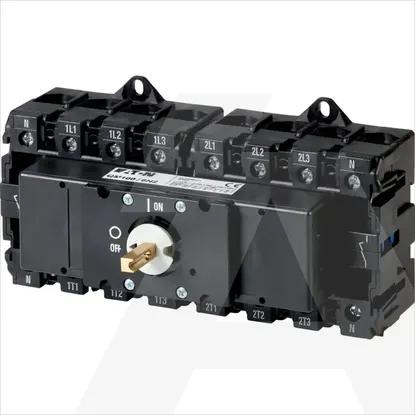

QM100/6N2
