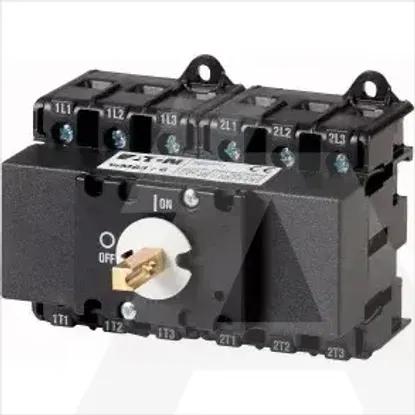

QM63/6
Code: 1202374
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as change-over contact0
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
Version as emergency stop installationNo
Number of switches2
Rated permanent current Iu50A
Rated operating voltage690 - 690V
Version as maintenance-/service switchNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Version as reversing switchNo
Rated permanent current at AC-21, 400 V63A
Version as main switchNo
Conditioned rated short-circuit current Iq15kA
Rated operation power at AC-23, 400 V22kW
Rated operation power at AC-3, 400 V18.5kW
Suitable for floor mountingNo
Rated short-time withstand current lcw0.78kA
Motor drive integratedNo
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
With pre-assembled cablingNo
Motor drive optionalNo
Height90mm
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Colour control elementOther
Degree of protection (NEMA)Other
Width130mm
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Depth130mm
Suitable for distribution board installationNo
Degree of protection (IP), front sideIP20
Version as safety switchNo
InterlockableNo
Number of poles6
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
