Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Number of auxiliary contacts as change-over contact0
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
Version as main switchNo
Version as emergency stop installationNo
Max. rated operation voltage Ue AC690V
Number of switches2
Version as maintenance-/service switchNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V63A
Rated operation power at AC-23, 400 V22kW
Rated operation power at AC-3, 400 V18.5kW
Conditioned rated short-circuit current Iq15kA
Rated permanent current Iu50A
Number of poles8
Number of auxiliary contacts as normally open contact0
Version as safety switchNo
Voltage release optionalNo
Motor drive integratedNo
Suitable for floor mountingNo
Motor drive optionalNo
Rated short-time withstand current lcw0.78kA
Suitable for distribution board installationNo
Colour control elementOther
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Suitable for intermediate mountingNo
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP20
With pre-assembled cablingNo
Width125mm
InterlockableNo
Depth125mm
Height90mm
Type of control elementOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

QM63/6N2

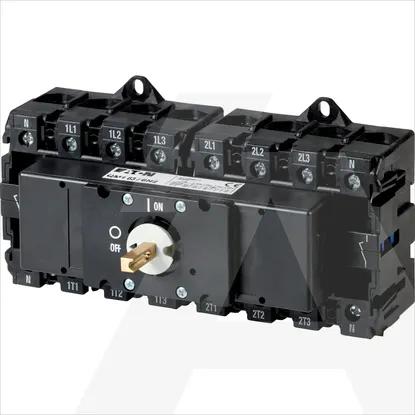

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Number of auxiliary contacts as change-over contact

0

Switching power at 400 V

-kW

Rated permanent current at AC-23, 400 V

-A

Version as main switch

Version as emergency stop installation

Max. rated operation voltage Ue AC

690V

Number of switches

2

Version as maintenance-/service switch

Version as reversing switch

Rated permanent current at AC-21, 400 V

63A

Rated operation power at AC-23, 400 V

22kW

Rated operation power at AC-3, 400 V

18.5kW

Conditioned rated short-circuit current Iq

15kA

Rated permanent current Iu

50A

Number of poles

8

Number of auxiliary contacts as normally open contact

0

Version as safety switch

Voltage release optional

Motor drive integrated

Suitable for floor mounting

Motor drive optional

Rated short-time withstand current lcw

0.78kA

Suitable for distribution board installation

Colour control element

Other

Suitable for front mounting centre

Suitable for front mounting 4-hole

Number of auxiliary contacts as normally closed contact

0

Rated operating voltage

690 .. 690V

Suitable for intermediate mounting

Device construction

Built-in device fixed built-in technique

Type of electrical connection of main circuit

Screw connection

Degree of protection (NEMA)

Other

Degree of protection (IP), front side

IP20

With pre-assembled cabling

Width

125mm

Interlockable

Depth

125mm

Height

90mm

Type of control element

Other
