Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Modular versionNo
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as normally closed contact1
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Rated operation current Ie at AC-1, 400 V25A
Rated operation current Ie at AC-3, 400 V25A
Rated operation power at AC-3, 400 V11kW
Rated operation current Ie at AC-4, 400 V25A
Rated operation power NEMA11kW
Rated operation power at AC-4, 400 V11kW
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at AC 60HZ240 - 240V
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Rated control supply voltage Us at DC0 - 0V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

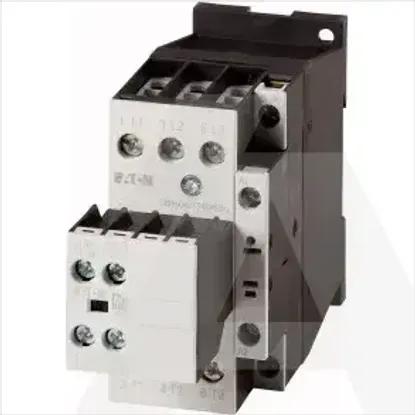

DILM25-21(230V50HZ,240V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Modular version
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
25A
Rated operation current Ie at AC-3, 400 V
25A
Rated operation power at AC-3, 400 V
11kW
Rated operation current Ie at AC-4, 400 V
25A
Rated operation power NEMA
11kW
Rated operation power at AC-4, 400 V
11kW
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Rated control supply voltage Us at AC 60HZ
240 .. 240V
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Rated control supply voltage Us at DC
0 .. 0V
