Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V15kW
Number of auxiliary contacts as normally open contact2
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingDC
Rated operation power NEMA14.9kW
Rated operation current Ie at AC-1, 400 V45A
Number of normally open contacts as main contact3
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated operation current Ie at AC-4, 400 V15A
Rated operation current Ie at AC-3, 400 V32A
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of auxiliary contacts as normally closed contact2
Rated control supply voltage Us at DC24 - 27V
Rated operation power at AC-4, 400 V7kW
Modular versionNo
Number of normally closed contacts as main contact0
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

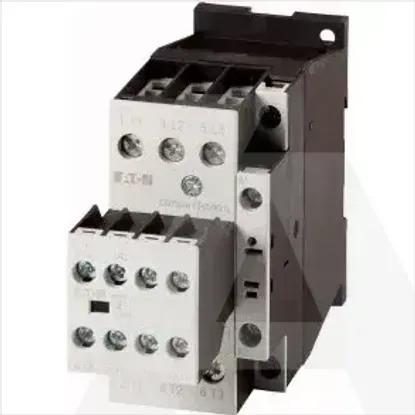

DILM32-22(RDC24)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated operation power at AC-3, 400 V
15kW
Number of auxiliary contacts as normally open contact
2
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
DC
Rated operation power NEMA
14.9kW
Rated operation current Ie at AC-1, 400 V
45A
Number of normally open contacts as main contact
3
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated operation current Ie at AC-4, 400 V
15A
Rated operation current Ie at AC-3, 400 V
32A
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Number of auxiliary contacts as normally closed contact
2
Rated control supply voltage Us at DC
24 .. 27V
Rated operation power at AC-4, 400 V
7kW
Modular version
Number of normally closed contacts as main contact
0
