Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Modular versionNo
Number of auxiliary contacts as normally closed contact2
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally open contact2
Rated control supply voltage Us at AC 60HZ240 - 240V
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Rated operation current Ie at AC-3, 400 V50A
Rated operation current Ie at AC-1, 400 V80A
Rated operation power at AC-3, 400 V22kW
Rated operation power at AC-4, 400 V10kW
Rated operation current Ie at AC-4, 400 V21A
Rated operation power NEMA29.8kW
Type of electrical connection of main circuitScrew connection
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

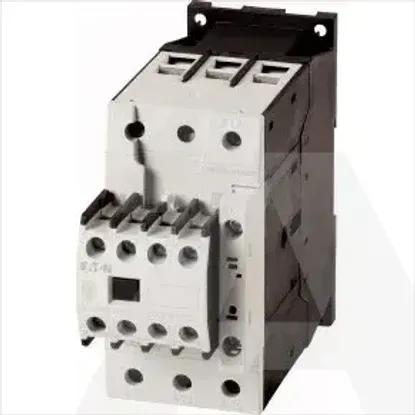

DILM50-22(230V50HZ,240V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Modular version
Number of auxiliary contacts as normally closed contact
2
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally open contact
2
Rated control supply voltage Us at AC 60HZ
240 .. 240V
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Rated control supply voltage Us at DC
0 .. 0V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
50A
Rated operation current Ie at AC-1, 400 V
80A
Rated operation power at AC-3, 400 V
22kW
Rated operation power at AC-4, 400 V
10kW
Rated operation current Ie at AC-4, 400 V
21A
Rated operation power NEMA
29.8kW
Type of electrical connection of main circuit
Screw connection
