Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Depth132.1mm
Width55mm
Height115mm
Number of normally open contacts as main contact3
Rated operation power at AC-3, 400 V37kW
Modular versionNo
Operating voltage at AC 60 Hz230 - 690V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 60HZ240 - 240V
Rated control supply voltage Us at DC0 - 0V
Rated operation power at AC-4, 400 V12kW
Rated operation current Ie at AC-1, 400 V98A
Operating voltage at AC 50 Hz230 - 690V
Rated operation power NEMA37kW
Rated operation current Ie at AC-4, 400 V25A
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated operation current Ie at AC-3, 400 V72A
Voltage type for actuatingAC
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

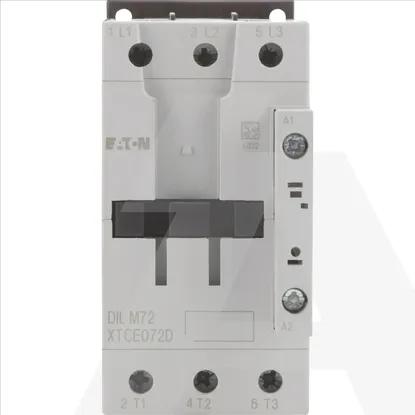

DILM72(230V50HZ,240V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Depth
132.1mm
Width
55mm
Height
115mm
Number of normally open contacts as main contact
3
Rated operation power at AC-3, 400 V
37kW
Modular version
Operating voltage at AC 60 Hz
230 .. 690V
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of normally closed contacts as main contact
0
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 60HZ
240 .. 240V
Rated control supply voltage Us at DC
0 .. 0V
Rated operation power at AC-4, 400 V
12kW
Rated operation current Ie at AC-1, 400 V
98A
Operating voltage at AC 50 Hz
230 .. 690V
Rated operation power NEMA
37kW
Rated operation current Ie at AC-4, 400 V
25A
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Rated operation current Ie at AC-3, 400 V
72A
Voltage type for actuating
AC
