Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V18.5kW
Width55mm
Modular versionNo
Height115mm
Depth132.1mm
Number of auxiliary contacts as normally open contact0
Number of normally open contacts as main contact3
Number of auxiliary contacts as normally closed contact0
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V40A
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at AC 60HZ240 - 240V
Voltage type for actuatingAC
Type of electrical connection of main circuitSpring clamp connection
Operating voltage at AC 50 Hz230 - 690V
Operating voltage at AC 60 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V18A
Rated control supply voltage Us at DC0 - 0V
Rated operation current Ie at AC-1, 400 V60A
Rated operation power at AC-4, 400 V9kW
Rated operation power NEMA22kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

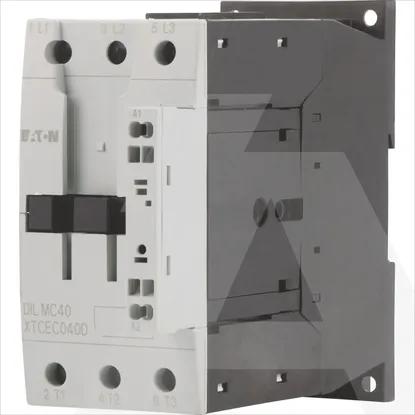

DILMC40(230V50HZ,240V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Rated operation power at AC-3, 400 V
18.5kW
Width
55mm
Modular version
Height
115mm
Depth
132.1mm
Number of auxiliary contacts as normally open contact
0
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally closed contact
0
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-3, 400 V
40A
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Rated control supply voltage Us at AC 60HZ
240 .. 240V
Voltage type for actuating
AC
Type of electrical connection of main circuit
Spring clamp connection
Operating voltage at AC 50 Hz
230 .. 690V
Operating voltage at AC 60 Hz
230 .. 690V
Rated operation current Ie at AC-4, 400 V
18A
Rated control supply voltage Us at DC
0 .. 0V
Rated operation current Ie at AC-1, 400 V
60A
Rated operation power at AC-4, 400 V
9kW
Rated operation power NEMA
22kW
