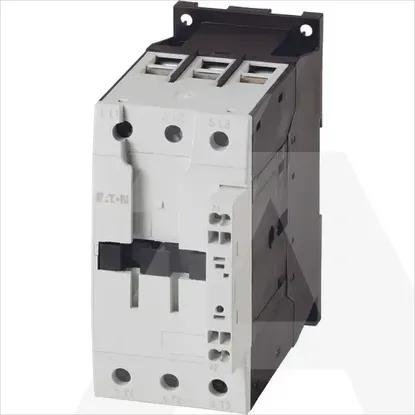

Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Width55mm
Modular versionNo
Number of normally open contacts as main contact3
Rated operation power at AC-3, 400 V30kW
Depth132.1mm
Height115mm
Rated operation current Ie at AC-3, 400 V65A
Number of auxiliary contacts as normally closed contact0
Rated control supply voltage Us at AC 60HZ240 - 240V
Operating voltage at AC 60 Hz230 - 690V
Number of auxiliary contacts as normally open contact0
Number of normally closed contacts as main contact0
Rated control supply voltage Us at DC0 - 0V
Type of electrical connection of main circuitSpring clamp connection
Rated operation current Ie at AC-1, 400 V98A
Rated control supply voltage Us at AC 50HZ230 - 230V
Operating voltage at AC 50 Hz230 - 690V
Voltage type for actuatingAC
Rated operation current Ie at AC-4, 400 V25A
Rated operation power NEMA37kW
Rated operation power at AC-4, 400 V12kW
Related products
