Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally closed contact1
Voltage type for actuatingAC
Rated control supply voltage Us at AC 60HZ240 - 240V
Operating voltage at AC 50 Hz24 - 690V
Operating voltage at AC 60 Hz24 - 690V
Number of normally open contacts as main contact4
Depth97mm
Rated operation current Ie at AC-4, 400 V15A
Number of normally closed contacts as main contact0
Rated operation power NEMA11kW
Modular versionNo
Rated operation power at AC-3, 400 V7.5kW
Rated operation current Ie at AC-3, 400 V18A
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at DC0 - 0V
Rated operation power at AC-4, 400 V7kW
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V32A
Number of auxiliary contacts as normally open contact0
Width58mm
Height85mm
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

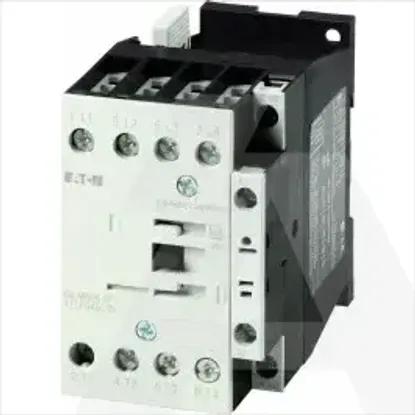

DILMP32-01(230V50HZ,240V60HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Number of auxiliary contacts as normally closed contact
1
Voltage type for actuating
AC
Rated control supply voltage Us at AC 60HZ
240 .. 240V
Operating voltage at AC 50 Hz
24 .. 690V
Operating voltage at AC 60 Hz
24 .. 690V
Number of normally open contacts as main contact
4
Depth
97mm
Rated operation current Ie at AC-4, 400 V
15A
Number of normally closed contacts as main contact
0
Rated operation power NEMA
11kW
Modular version
Rated operation power at AC-3, 400 V
7.5kW
Rated operation current Ie at AC-3, 400 V
18A
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Rated control supply voltage Us at DC
0 .. 0V
Rated operation power at AC-4, 400 V
7kW
Type of electrical connection of main circuit
Screw connection
Rated operation current Ie at AC-1, 400 V
32A
Number of auxiliary contacts as normally open contact
0
Width
58mm
Height
85mm
