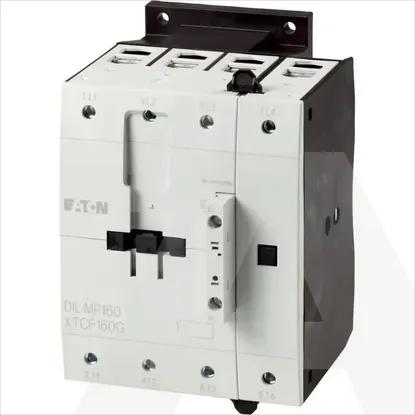

Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated operation current Ie at AC-3, 400 V95A
Rated control supply voltage Us at AC 60HZ190 - 240V
Number of normally closed contacts as main contact0
Number of auxiliary contacts as normally open contact0
Rated operation current Ie at AC-1, 400 V160A
Number of normally open contacts as main contact4
Height170mm
Rated operation power at AC-3, 400 V45kW
Width122mm
Number of auxiliary contacts as normally closed contact0
Modular versionNo
Rated control supply voltage Us at AC 50HZ190 - 240V
Depth160mm
Rated control supply voltage Us at DC0 - 0V
Rated operation power NEMA55kW
Operating voltage at AC 60 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V65A
Operating voltage at AC 50 Hz230 - 690V
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-4, 400 V33kW
Voltage type for actuatingAC
