Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally open contacts as main contact4
Modular versionNo
Rated operation power at AC-3, 400 V55kW
Width122mm
Depth160mm
Height170mm
Rated control supply voltage Us at DC0 - 0V
Type of electrical connection of main circuitScrew connection
Rated control supply voltage Us at AC 60HZ190 - 240V
Rated control supply voltage Us at AC 50HZ190 - 240V
Rated operation current Ie at AC-1, 400 V200A
Operating voltage at AC 60 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V136A
Rated operation current Ie at AC-3, 400 V115A
Rated operation power at AC-4, 400 V75kW
Number of auxiliary contacts as normally open contact0
Voltage type for actuatingAC
Operating voltage at AC 50 Hz230 - 690V
Number of normally closed contacts as main contact0
Rated operation power NEMA93kW
Number of auxiliary contacts as normally closed contact0
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

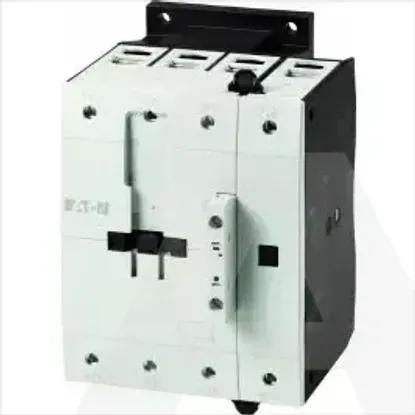

DILMP200(RAC240)
