Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth44mm
Voltage typeAC
Mounting methodDIN rail
Pollution degree3
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
Rated insulation voltage Ui500V
Surge current capacity0.25kA
With interlocking deviceNo
Width in number of modular spacings4
Connectable conductor cross section multi-wired1 - 25mm²
Short-time delayed trippingNo
Degree of protection (IP)IP20
Explosion-proofNo
Connectable conductor cross section solid-core1 - 35mm²
Additional equipment possibleYes
Rated impulse withstand voltage Uimp6kV
Frequency50/60 Hz
Ambient temperature during operating-5 - 60°C
Rated current25A
Rated voltage415V
Number of poles4
Rated fault current0.3A
Leakage current typeAC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

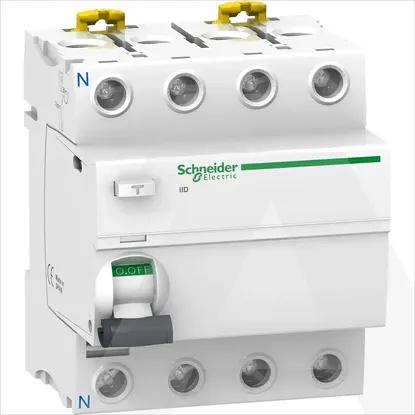

A9R44425 | Dif. Zaš. Sklopka iID 4P 25A 300MA AC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Voltage type
AC
Mounting method
DIN rail
Pollution degree
3
Short-circuit breaking capacity (Icw)
10kA
Selective protection
Rated insulation voltage Ui
500V
Surge current capacity
0.25kA
With interlocking device
Width in number of modular spacings
4
Connectable conductor cross section multi-wired
1 .. 25mm²
Short-time delayed tripping
Degree of protection (IP)
IP20
Explosion-proof
Connectable conductor cross section solid-core
1 .. 35mm²
Additional equipment possible
Rated impulse withstand voltage Uimp
6kV
Frequency
50/60 Hz
Ambient temperature during operating
-5 .. 60°C
Rated current
25A
Rated voltage
415V
Number of poles
4
Rated fault current
0.3A
Leakage current type
AC
