Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •SOCOMEC
Technical specifications
Rated permanent current Iu63A
Rated operation power at AC-3, 400 V-kW
Rated operating voltage400 - 690V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles3
Motor drive integratedNo
InterlockableYes
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeYes
Suitable for floor mountingYes
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Rated short-time withstand current lcw1.5kA
Version as main switchYes
Suitable for intermediate mountingYes
Version as emergency stop installationYes
Version as safety switchYes
Type of control elementOther
Voltage release optionalNo
Motor drive optionalNo
Max. rated operation voltage Ue AC800V
Rated operation power at AC-23, 400 V30kW
Version as maintenance-/service switchYes
Conditioned rated short-circuit current Iq50kA
Type of electrical connection of main circuitScrew connection
Colour control elementOther
Number of switches1
Rated permanent current at AC-21, 400 V63A
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Switching power at 400 V30kW
Rated permanent current at AC-23, 400 V63A
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

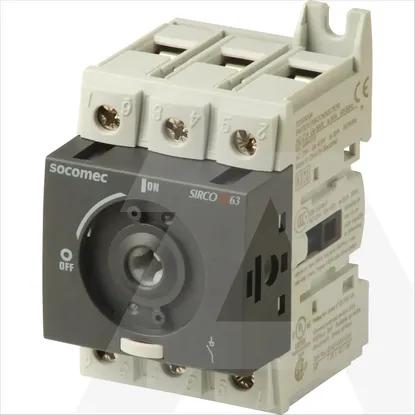

22003006 | SIRCO M2 3X63A
