Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •SOCOMEC
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Motor drive integratedNo
Number of poles3
Type of control elementOther
Version as main switchYes
Number of switches1
Type of electrical connection of main circuitBolt connection
Rated permanent current Iu630A
Rated operating voltage400 - 500V
Version as emergency stop installationYes
Conditioned rated short-circuit current Iq70kA
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
InterlockableYes
Rated operation power at AC-23, 400 V280kW
Suitable for distribution board installationYes
Colour control elementOther
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Version as safety switchYes
Suitable for floor mountingYes
Rated short-time withstand current lcw13kA
Version as maintenance-/service switchYes
Motor drive optionalNo
Suitable for intermediate mountingYes
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-21, 400 V630A
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V280kW
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V500A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

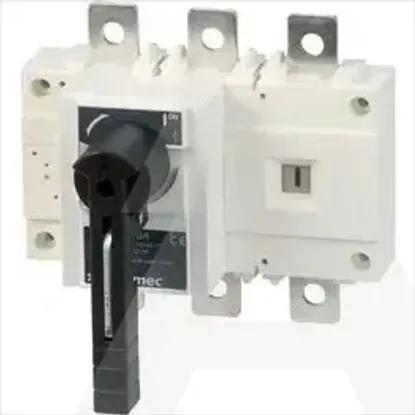

26003064 | SIRCO 3X630A F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- SOCOMEC
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation power at AC-3, 400 V
-kW
Motor drive integrated
Number of poles
3
Type of control element
Other
Version as main switch
Number of switches
1
Type of electrical connection of main circuit
Bolt connection
Rated permanent current Iu
630A
Rated operating voltage
400 .. 500V
Version as emergency stop installation
Conditioned rated short-circuit current Iq
70kA
Degree of protection (IP), front side
IP20
Number of auxiliary contacts as change-over contact
0
Interlockable
Rated operation power at AC-23, 400 V
280kW
Suitable for distribution board installation
Colour control element
Other
Suitable for front mounting centre
Suitable for front mounting 4-hole
Version as safety switch
Suitable for floor mounting
Rated short-time withstand current lcw
13kA
Version as maintenance-/service switch
Motor drive optional
Suitable for intermediate mounting
Max. rated operation voltage Ue AC
1000V
Rated permanent current at AC-21, 400 V
630A
Device construction
Built-in device fixed built-in technique
Switching power at 400 V
280kW
Voltage release optional
Version as reversing switch
Rated permanent current at AC-23, 400 V
500A
