Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Rated operating voltage750 - 750V
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
InterlockableNo
Motor drive integratedNo
Number of switches-
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Type of control elementShort thumb-grip
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Switching power at 400 V37kW
Rated operation power at AC-23, 400 V37kW
Rated short-time withstand current lcw1.5kA
Voltage release optionalNo
Max. rated operation voltage Ue AC750V
Rated permanent current at AC-21, 400 V80A
Suitable for front mounting centreNo
Version as safety switchNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Suitable for floor mountingNo
Degree of protection (NEMA)1
Rated permanent current Iu80A
Number of poles3
Version as emergency stop installationYes
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V75A
Suitable for floor mountingYes
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

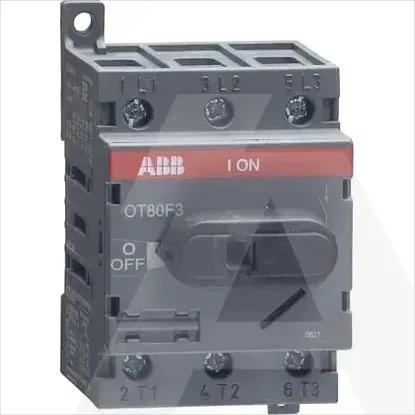

1SCA105798R1001 | OT80F3
