Details
- •Low-voltage industrial components

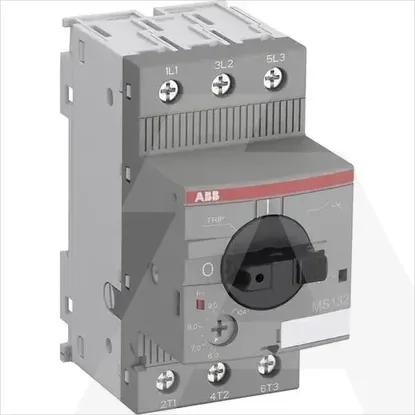

- •Motor protection circuit-breaker
- •1 KOM
- •ABB
Technical specifications
With integrated auxiliary switchNo
Rated operation power at AC-3, 400 V0.75kW
Rated short-circuit breaking capacity lcu at 400 V, AC100kA
Type of control elementTurn button
Rated operation power at AC-3, 230 V-kW
Rated permanent current Iu2.5A
With thermal protectionYes
Overload release current setting1.6 - 2.5A
With integrated under voltage releaseNo
Type of electrical connection of main circuitScrew connection
Number of poles3
Width45mm
Depth86.75mm
Rated operating voltage250 - 690V
Degree of protection (IP)IP20
Height90mm
Switch off techniqueThermomagnetic
Phase failure sensitiveYes
Device constructionComplete device in housing
Adjustment range undelayed short-circuit release31.3 - 31.3A
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SAM350000R1007 | MS132-2.5
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- ABB
DetailsTechnical specificationsFrom same serie
Technical specifications
With integrated auxiliary switch
Rated operation power at AC-3, 400 V
0.75kW
Rated short-circuit breaking capacity lcu at 400 V, AC
100kA
Type of control element
Turn button
Rated operation power at AC-3, 230 V
-kW
Rated permanent current Iu
2.5A
With thermal protection
Overload release current setting
1.6 .. 2.5A
With integrated under voltage release
Type of electrical connection of main circuit
Screw connection
Number of poles
3
Width
45mm
Depth
86.75mm
Rated operating voltage
250 .. 690V
Degree of protection (IP)
IP20
Height
90mm
Switch off technique
Thermomagnetic
Phase failure sensitive
Device construction
Complete device in housing
Adjustment range undelayed short-circuit release
31.3 .. 31.3A
From same serie
