Details
- •Low-voltage control systems

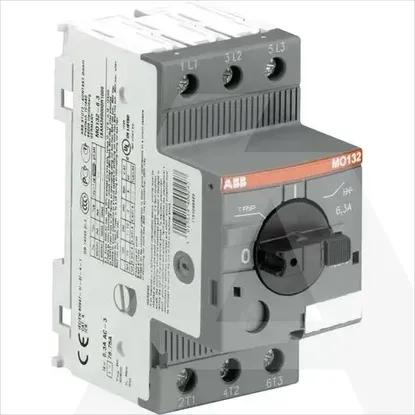

- •Motor protection circuit-breaker
- •1 KOM
- •ABB
Technical specifications
Depth86.75mm
Height90mm
Width45mm
With integrated auxiliary switchNo
With integrated under voltage releaseNo
Degree of protection (IP)IP20
Type of control elementTurn button
Switch off techniqueMagnetic
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
Rated operation power at AC-3, 230 V-kW
Phase failure sensitiveNo
Device constructionComplete device in housing
Adjustment range undelayed short-circuit release78.8 - 78.8A
With thermal protectionNo
Rated operation power at AC-3, 400 V2.2kW
Rated permanent current Iu6.3A
Number of poles3
Overload release current setting6.3 - 6.3A
Rated short-circuit breaking capacity lcu at 400 V, AC100kA
