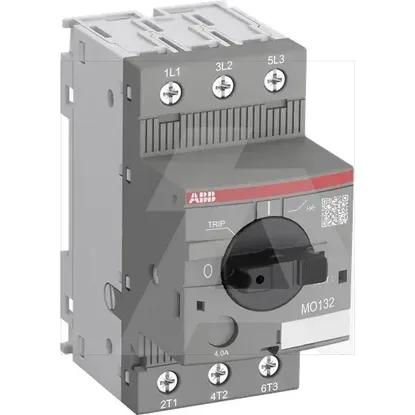

Details
- •Low-voltage control systems
- •Motor protection circuit-breaker
- •1 KOM
- •ABB
Technical specifications
Depth86.75mm
With integrated under voltage releaseNo
Height90mm
Width45mm
With integrated auxiliary switchNo
Rated operating voltage690 - 690V
Type of control elementTurn button
Rated operation power at AC-3, 230 V-kW
Switch off techniqueMagnetic
Device constructionComplete device in housing
Type of electrical connection of main circuitScrew connection
Adjustment range undelayed short-circuit release125 - 125A
Phase failure sensitiveNo
Degree of protection (IP)IP20
With thermal protectionNo
Rated operation power at AC-3, 400 V4kW
Rated permanent current Iu10A
Number of poles3
Overload release current setting10 - 10A
Rated short-circuit breaking capacity lcu at 400 V, AC100kA
