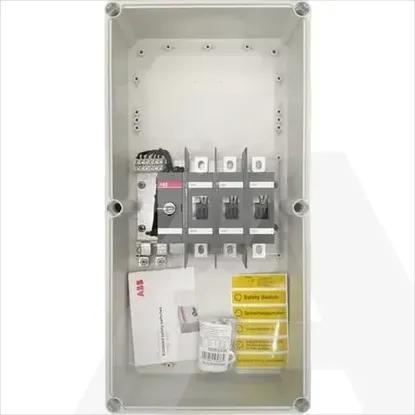

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact2
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Motor drive integratedNo
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Suitable for floor mountingNo
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V110kW
Number of switches1
Colour control elementRed
InterlockableNo
Suitable for front mounting 4-holeYes
Number of auxiliary contacts as normally closed contact1
Rated short-time withstand current lcw-kA
Version as main switchYes
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V200A
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Switching power at 400 V110kW
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V200A
Voltage release optionalNo
Number of poles3
Rated permanent current Iu200A
Degree of protection (IP), front sideIP65
Version as safety switchYes
Colour housingGrey
Height560mm
Depth180mm
Device constructionComplete device in housing
Width280mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022278R1340 | OT200KFCC3A
