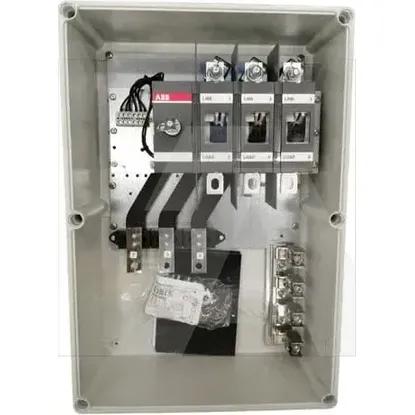

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
InterlockableNo
Rated operation power at AC-3, 400 V-kW
Motor drive integratedNo
Width in number of modular spacings-
Number of switches1
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact2
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact1
Version as emergency stop installationNo
Type of control elementLong turning handle
Version as main switchYes
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Rated operation power at AC-23, 400 V160kW
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V315A
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V315A
Voltage release optionalNo
With pre-assembled cablingNo
Switching power at 400 V160kW
Colour control elementRed
Suitable for floor mountingNo
Rated short-time withstand current lcw-kA
Version as safety switchYes
Rated permanent current Iu315A
Number of poles3
Device constructionComplete device in housing
Material housingPlastic
Colour housingGrey
Degree of protection (IP), front sideIP65
Width380mm
Height560mm
Depth180mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022298R8280 | OT315KGCC3A
