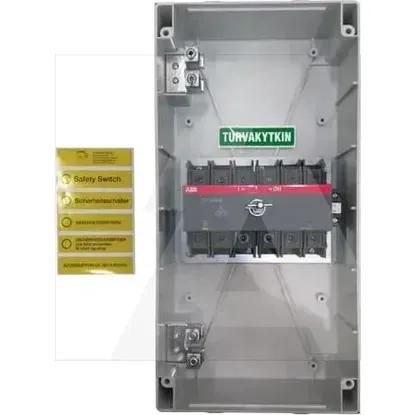

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact1
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Rated operating voltage750 - 750V
Number of auxiliary contacts as change-over contact0
Depth140mm
Motor drive integratedNo
Number of switches1
Type of control elementLong turning handle
Suitable for floor mountingNo
Version as main switchYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V37kW
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
Rated short-time withstand current lcw-kA
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V100A
Voltage release optionalNo
Switching power at 400 V37kW
Colour control elementRed
Rated permanent current at AC-23, 400 V80A
Motor drive optionalNo
Version as reversing switchNo
With pre-assembled cablingNo
Version as safety switchYes
Version as maintenance-/service switchYes
Colour housingGrey
Device constructionComplete device in housing
InterlockableYes
Material housingPlastic
Degree of protection (IP), front sideIP65
Height400mm
Width200mm
Rated permanent current Iu75A
Number of poles6
Max. rated operation voltage Ue AC750V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022401R2710 | OTP75A6B
