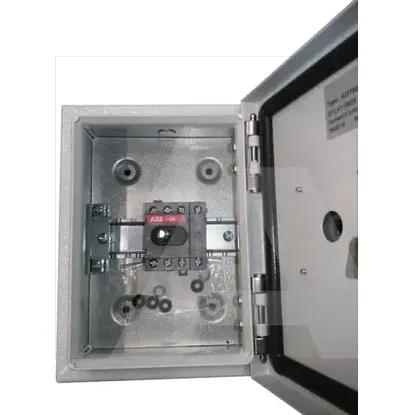

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage750 - 750V
Number of switches1
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
InterlockableNo
Version as emergency stop installationNo
Suitable for distribution board installationNo
Motor drive integratedNo
Voltage release optionalNo
Suitable for front mounting centreNo
Version as main switchYes
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V40A
Suitable for floor mountingNo
Switching power at 400 V11kW
Version as maintenance-/service switchNo
Type of control elementTurn button
Version as reversing switchNo
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Rated operation power at AC-23, 400 V11kW
Rated short-time withstand current lcw-kA
Colour control elementBlack
Rated permanent current at AC-23, 400 V23A
Version as safety switchYes
Rated permanent current Iu32A
Number of poles3
Device constructionComplete device in housing
Height200mm
Colour housingGrey
Depth100mm
Max. rated operation voltage Ue AC690V
Degree of protection (IP), front sideIP65
Width150mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022562R3630 | OTL32B3M
