Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Rated operating voltage750 - 750V
Type of control elementTurn button
Version as main switchYes
Number of switches1
Motor drive integratedNo
Rated operation power at AC-23, 400 V22kW
Version as emergency stop installationNo
Rated short-time withstand current lcw-kA
Suitable for floor mountingNo
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC750V
Version as reversing switchNo
Motor drive optionalNo
Switching power at 400 V22kW
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V63A
With pre-assembled cablingNo
Version as maintenance-/service switchYes
Number of poles3
Degree of protection (IP), front sideIP65
Material housingPlastic
Colour control elementBlack
Version as safety switchYes
Colour housingGrey
Device constructionComplete device in housing
InterlockableYes
Rated permanent current at AC-23, 400 V36A
Rated permanent current Iu40A
Height200mm
Width150mm
Depth100mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

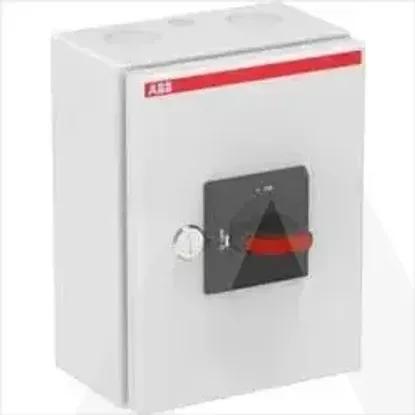

1SCA022613R0060 | OTL36T3M
