Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact1
Rated operating voltage750 - 750V
Rated permanent current Iu80A
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
InterlockableNo
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Motor drive integratedNo
Number of switches1
Rated operation power at AC-23, 400 V22kW
Version as main switchYes
Version as emergency stop installationNo
Type of control elementTurn button
Colour control elementRed
Rated short-time withstand current lcw-kA
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Motor drive optionalNo
Voltage release optionalNo
Suitable for floor mountingNo
Max. rated operation voltage Ue AC750V
Version as reversing switchNo
Rated permanent current at AC-21, 400 V63A
Switching power at 400 V22kW
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V45A
Version as safety switchYes
Material housingPlastic
Version as maintenance-/service switchYes
Number of poles3
Colour housingGrey
Degree of protection (IP), front sideIP65
Device constructionComplete device in housing
Width145mm
Height200mm
Depth90mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

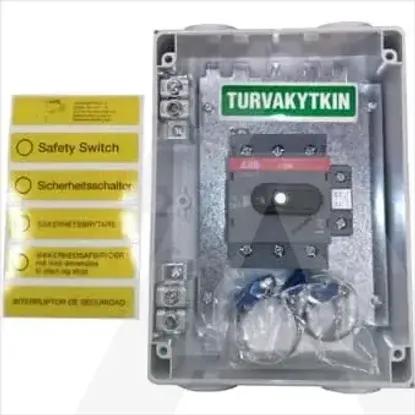

1SCA022613R9280 | OTE36A3M
