Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Motor drive integratedNo
Cable entryOther
Rated operation power at AC-23, 400 V200kW
Suitable for busbar mountingYes
Version as safety switchYes
Version as main switchYes
Suitable for front mountingNo
Suitable for floor mountingNo
Rated short-time withstand current lcw8kA
Equipped with connectorsYes
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
With error protectionNo
Rated permanent current Iu200A
Degree of protection (IP), front sideIP65
Type of control elementDoor coupling rotary drive
Suitable for floor mountingYes
Position control elementFront side
Number of poles3
Suitable for fusesOther
Type of electrical connection of main circuitBolt connection
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

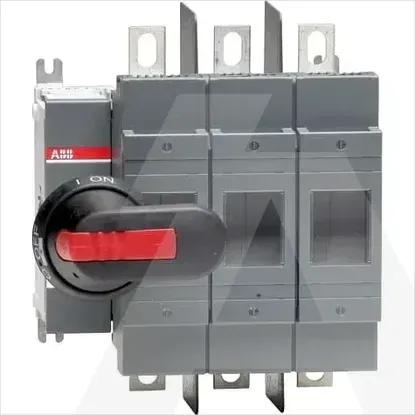

1SCA022709R9760 | OS200J03P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Version as emergency stop installation
Motor drive integrated
Cable entry
Other
Rated operation power at AC-23, 400 V
200kW
Suitable for busbar mounting
Version as safety switch
Version as main switch
Suitable for front mounting
Suitable for floor mounting
Rated short-time withstand current lcw
8kA
Equipped with connectors
Motor drive optional
Max. rated operation voltage Ue AC
1000V
With error protection
Rated permanent current Iu
200A
Degree of protection (IP), front side
IP65
Type of control element
Door coupling rotary drive
Suitable for floor mounting
Position control element
Front side
Number of poles
3
Suitable for fuses
Other
Type of electrical connection of main circuit
Bolt connection
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
