Details
- •Low-voltage industrial components

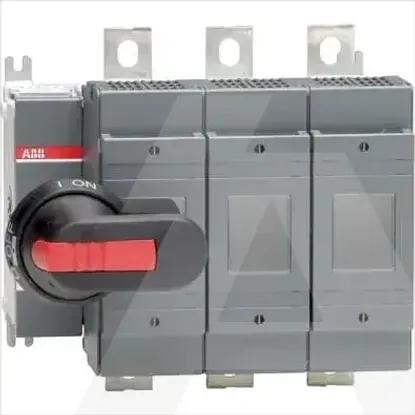

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Rated permanent current Iu250A
Cable entryOther
Version as emergency stop installationNo
Version as main switchYes
Motor drive integratedNo
Type of control elementLong turning handle
Suitable for fusesNH0, NH1
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Position control elementLeft
Suitable for front mountingNo
Version as safety switchYes
Motor drive optionalNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Suitable for floor mountingNo
Rated short-time withstand current lcw8kA
With error protectionNo
Rated operation power at AC-23, 400 V250kW
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022719R0090 | OS250D03P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles
3
Rated permanent current Iu
250A
Cable entry
Other
Version as emergency stop installation
Version as main switch
Motor drive integrated
Type of control element
Long turning handle
Suitable for fuses
NH0, NH1
Conditioned rated short-circuit current Iq
80kA
Type of electrical connection of main circuit
Bolt connection
Position control element
Left
Suitable for front mounting
Version as safety switch
Motor drive optional
Suitable for busbar mounting
Equipped with connectors
Suitable for floor mounting
Rated short-time withstand current lcw
8kA
With error protection
Rated operation power at AC-23, 400 V
250kW
Max. rated operation voltage Ue AC
1000V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
