Details
- •Low-voltage control systems

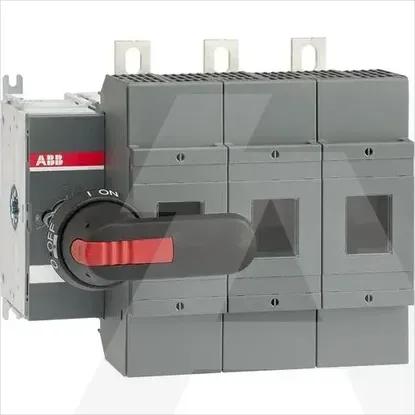

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V400kW
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw14kA
Conditioned rated short-circuit current Iq80kA
Version as safety switchYes
Suitable for floor mountingNo
Version as main switchYes
Version as emergency stop installationNo
Cable entryOther
Motor drive integratedNo
With error protectionNo
Motor drive optionalNo
Suitable for front mountingNo
Position control elementLeft
Suitable for busbar mountingYes
Equipped with connectorsYes
Rated permanent current Iu400A
Number of poles3
Degree of protection (IP), front sideIP65
Suitable for fusesOther
Max. rated operation voltage Ue AC690V
Suitable for floor mountingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022719R1140 | OS400J03P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Type of control element
Long turning handle
Rated operation power at AC-23, 400 V
400kW
Type of electrical connection of main circuit
Bolt connection
Rated short-time withstand current lcw
14kA
Conditioned rated short-circuit current Iq
80kA
Version as safety switch
Suitable for floor mounting
Version as main switch
Version as emergency stop installation
Cable entry
Other
Motor drive integrated
With error protection
Motor drive optional
Suitable for front mounting
Position control element
Left
Suitable for busbar mounting
Equipped with connectors
Rated permanent current Iu
400A
Number of poles
3
Degree of protection (IP), front side
IP65
Suitable for fuses
Other
Max. rated operation voltage Ue AC
690V
Suitable for floor mounting
