Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Suitable for fusesNH0
Rated permanent current Iu200A
Conditioned rated short-circuit current Iq80kA
Number of poles4
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
With error protectionNo
Version as safety switchYes
Rated operation power at AC-23, 400 V200kW
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Version as emergency stop installationNo
Rated short-time withstand current lcw8kA
Version as main switchYes
Suitable for busbar mountingYes
Position control elementLeft
Equipped with connectorsYes
Suitable for floor mountingNo
Suitable for front mountingNo
Type of control elementLong turning handle
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

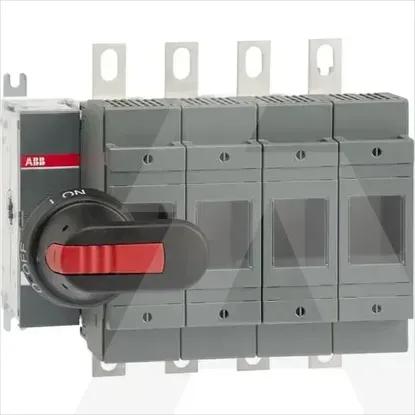

1SCA022725R4750 | OS200D04FP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Suitable for fuses
NH0
Rated permanent current Iu
200A
Conditioned rated short-circuit current Iq
80kA
Number of poles
4
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
With error protection
Version as safety switch
Rated operation power at AC-23, 400 V
200kW
Max. rated operation voltage Ue AC
1000V
Motor drive optional
Version as emergency stop installation
Rated short-time withstand current lcw
8kA
Version as main switch
Suitable for busbar mounting
Position control element
Left
Equipped with connectors
Suitable for floor mounting
Suitable for front mounting
Type of control element
Long turning handle
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
