Details
- •Low-voltage industrial components

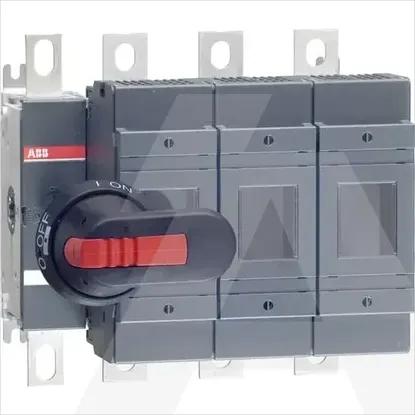

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-23, 400 V250kW
Conditioned rated short-circuit current Iq80kA
With error protectionNo
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Suitable for busbar mountingYes
Suitable for floor mountingNo
Suitable for fusesNH0, NH1
Type of control elementLong turning handle
Number of poles3
Version as main switchYes
Cable entryOther
Suitable for front mountingNo
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Rated permanent current Iu250A
Version as safety switchYes
Rated short-time withstand current lcw8kA
Equipped with connectorsYes
Position control elementLeft
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022749R9430 | OS250D03N3P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation power at AC-23, 400 V
250kW
Conditioned rated short-circuit current Iq
80kA
With error protection
Version as emergency stop installation
Type of electrical connection of main circuit
Bolt connection
Motor drive integrated
Suitable for busbar mounting
Suitable for floor mounting
Suitable for fuses
NH0, NH1
Type of control element
Long turning handle
Number of poles
3
Version as main switch
Cable entry
Other
Suitable for front mounting
Motor drive optional
Max. rated operation voltage Ue AC
1000V
Rated permanent current Iu
250A
Version as safety switch
Rated short-time withstand current lcw
8kA
Equipped with connectors
Position control element
Left
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
