Details
- •Low-voltage industrial components

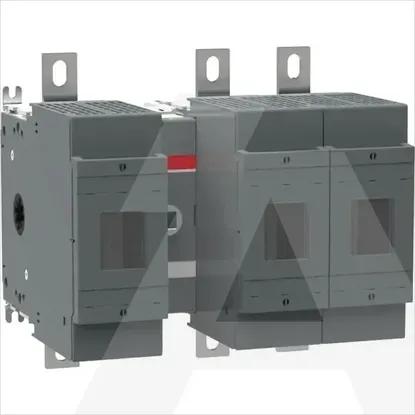

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu400A
Cable entryOther
Number of poles3
Version as safety switchYes
Suitable for front mountingNo
Suitable for busbar mountingYes
Max. rated operation voltage Ue AC1000V
Suitable for fusesNH0, NH1, NH2
Rated operation power at AC-23, 400 V400kW
Rated short-time withstand current lcw14kA
Type of electrical connection of main circuitBolt connection
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq80kA
Suitable for floor mountingNo
Version as main switchYes
Motor drive integratedNo
With error protectionNo
Position control elementFront side
Equipped with connectorsYes
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022753R1850 | OS400D12
