Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Position control elementLeft
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Suitable for busbar mountingYes
With error protectionNo
Suitable for floor mountingNo
Motor drive optionalNo
Equipped with connectorsYes
Suitable for front mountingNo
Rated short-time withstand current lcw14kA
Version as safety switchYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V400kW
Version as main switchYes
Type of control elementLong turning handle
Max. rated operation voltage Ue AC690V
Suitable for floor mountingYes
Rated permanent current Iu400A
Suitable for fusesNH1, NH2
Number of poles3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

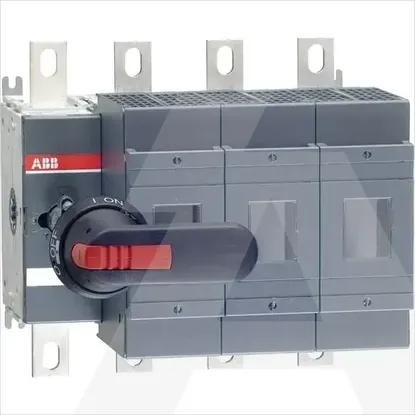

1SCA022753R9320 | OS400D03N3P
