Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Depth160mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Width205mm
Height150mm
Degree of protection (IP), front sideIP20
Motor drive integratedNo
InterlockableYes
Number of switches1
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Version as emergency stop installationNo
Version as main switchYes
Version as safety switchNo
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeYes
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V110kW
Rated short-time withstand current lcw8kA
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC1000V
Voltage release optionalNo
Motor drive optionalNo
Device constructionBuilt-in device plug-in technique
Degree of protection (NEMA)1
Version as reversing switchNo
Rated permanent current at AC-21, 400 V200A
Rated permanent current at AC-23, 400 V200A
Switching power at 400 V110kW
With pre-assembled cablingNo
Number of poles4
Rated permanent current Iu200A
Colour control elementBlack
Material housingPlastic
Colour housingGrey
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

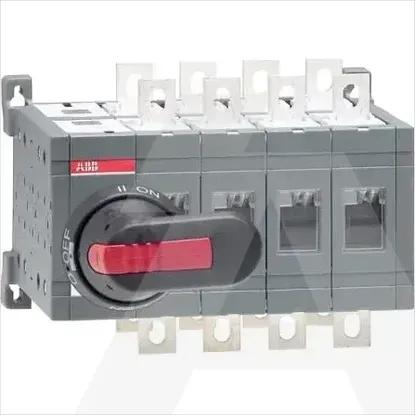

1SCA022771R7280 | OT200E04CP
