Details
- •Low-voltage industrial components

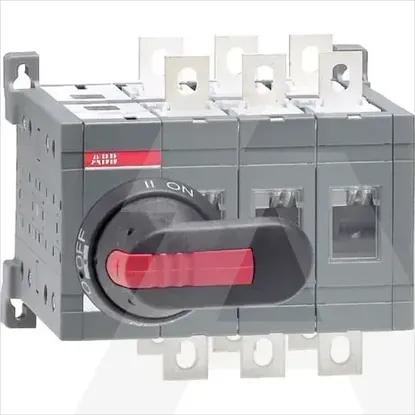

- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu-A
Number of auxiliary contacts as normally closed contact0
Height150mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Depth160mm
Width170mm
Conditioned rated short-circuit current Iq-kA
Number of poles3
Rated operating voltage1000 - 1000V
Type of control elementLong turning handle
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Colour control elementBlack
Suitable for intermediate mountingNo
InterlockableYes
Device constructionBuilt-in device plug-in technique
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Voltage release optionalNo
Max. rated operation voltage Ue AC1000V
Number of switches1
Suitable for floor mountingNo
Version as main switchYes
Rated short-time withstand current lcw8kA
Motor drive integratedNo
Suitable for distribution board installationYes
Version as safety switchNo
Rated operation power at AC-23, 400 V90kW
Width in number of modular spacings-
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Rated permanent current at AC-21, 400 V160A
Switching power at 400 V90kW
Degree of protection (NEMA)1
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V160A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022772R6510 | OT160E03CP
