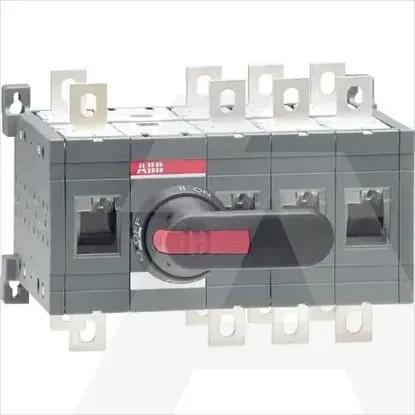

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Width265mm
Depth203mm
Number of auxiliary contacts as normally open contact0
Height185mm
Rated operation power at AC-3, 400 V-kW
Suitable for intermediate mountingNo
Number of switches1
InterlockableYes
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Version as emergency stop installationNo
Type of control elementLong turning handle
Version as safety switchNo
Width in number of modular spacings-
Max. rated operation voltage Ue AC1000V
Colour control elementBlack
Rated operation power at AC-23, 400 V220kW
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
Suitable for floor mountingNo
Rated operating voltage1000 - 1000V
Version as main switchYes
Rated short-time withstand current lcw15kA
Switching power at 400 V220kW
Rated permanent current at AC-21, 400 V400A
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Motor drive optionalNo
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V400A
Degree of protection (NEMA)1
Colour housingGrey
Rated permanent current Iu400A
Number of poles4
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Suitable for floor mountingYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022777R0500 | OT400E13CP
