Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Version as emergency stop installationNo
Motor drive integratedNo
With error protectionNo
Suitable for front mountingNo
Suitable for busbar mountingYes
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V400kW
Version as safety switchYes
Motor drive optionalNo
Rated short-time withstand current lcw14kA
Suitable for floor mountingNo
Position control elementLeft
Version as main switchYes
Equipped with connectorsYes
Rated permanent current Iu400A
Number of poles3
Suitable for fusesNH1, NH2
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

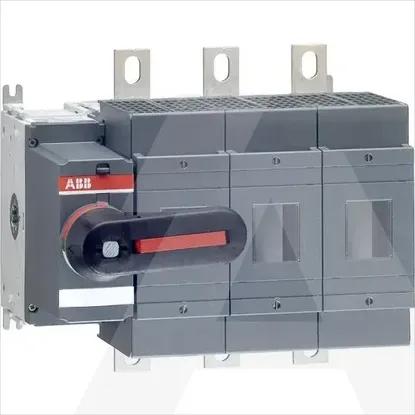

1SCA022779R5410 | OS400D03K
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Version as emergency stop installation
Motor drive integrated
With error protection
Suitable for front mounting
Suitable for busbar mounting
Type of control element
Long turning handle
Type of electrical connection of main circuit
Bolt connection
Rated operation power at AC-23, 400 V
400kW
Version as safety switch
Motor drive optional
Rated short-time withstand current lcw
14kA
Suitable for floor mounting
Position control element
Left
Version as main switch
Equipped with connectors
Rated permanent current Iu
400A
Number of poles
3
Suitable for fuses
NH1, NH2
Max. rated operation voltage Ue AC
690V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
