Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Depth280mm
Number of auxiliary contacts as normally closed contact0
Number of switches1
Height250mm
Rated operating voltage1000 - 1000V
Width376mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
InterlockableYes
Type of control elementLong turning handle
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq-kA
Version as safety switchNo
Suitable for floor mountingNo
Version as main switchYes
Rated operation power at AC-23, 400 V355kW
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Suitable for front mounting centreNo
Rated short-time withstand current lcw20kA
Suitable for intermediate mountingNo
Version as reversing switchNo
Suitable for distribution board installationYes
Version as maintenance-/service switchYes
Motor drive optionalNo
Switching power at 400 V355kW
Degree of protection (NEMA)1
With pre-assembled cablingNo
Suitable for front mounting 4-holeYes
Rated permanent current Iu630A
Rated permanent current at AC-23, 400 V630A
Number of poles4
Rated permanent current at AC-21, 400 V630A
Material housingPlastic
Max. rated operation voltage Ue AC1000V
Colour control elementBlack
Colour housingGrey
Motor drive integratedNo
Degree of protection (IP), front sideIP65
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

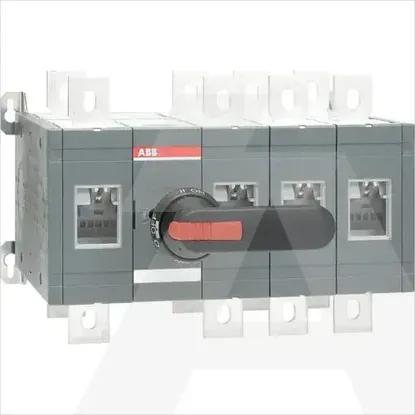

1SCA022785R9070 | OT630E13CP
