Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Suitable for fusesShape C1-C3
Motor drive integratedNo
Number of poles3
Conditioned rated short-circuit current Iq80kA
Rated permanent current Iu720A
Cable entryOther
Type of electrical connection of main circuitBolt connection
Version as safety switchYes
Max. rated operation voltage Ue AC1000V
Rated operation power at AC-23, 400 V710kW
Type of control elementLong turning handle
Rated short-time withstand current lcw18kA
Suitable for front mountingNo
Version as emergency stop installationNo
Suitable for busbar mountingYes
Suitable for floor mountingNo
Position control elementLeft
Motor drive optionalNo
With error protectionNo
Version as main switchYes
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

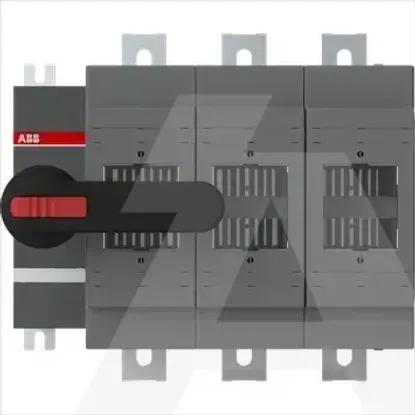

1SCA022825R7550 | OS800B03P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Suitable for fuses
Shape C1-C3
Motor drive integrated
Number of poles
3
Conditioned rated short-circuit current Iq
80kA
Rated permanent current Iu
720A
Cable entry
Other
Type of electrical connection of main circuit
Bolt connection
Version as safety switch
Max. rated operation voltage Ue AC
1000V
Rated operation power at AC-23, 400 V
710kW
Type of control element
Long turning handle
Rated short-time withstand current lcw
18kA
Suitable for front mounting
Version as emergency stop installation
Suitable for busbar mounting
Suitable for floor mounting
Position control element
Left
Motor drive optional
With error protection
Version as main switch
Equipped with connectors
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
