Details
- •Low-voltage industrial components

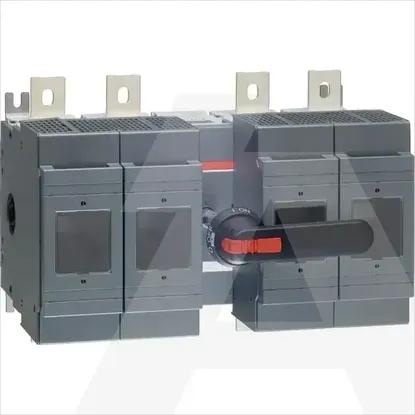

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Rated permanent current Iu720A
Number of poles4
Suitable for fusesShape C1-C3
Version as emergency stop installationNo
Cable entryOther
Type of control elementLong turning handle
Version as safety switchYes
Rated operation power at AC-23, 400 V710kW
With error protectionNo
Suitable for floor mountingNo
Position control elementFront side
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Rated short-time withstand current lcw18kA
Version as main switchYes
Suitable for front mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022825R8440 | OS800B22N2P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Rated permanent current Iu
720A
Number of poles
4
Suitable for fuses
Shape C1-C3
Version as emergency stop installation
Cable entry
Other
Type of control element
Long turning handle
Version as safety switch
Rated operation power at AC-23, 400 V
710kW
With error protection
Suitable for floor mounting
Position control element
Front side
Max. rated operation voltage Ue AC
1000V
Motor drive optional
Suitable for busbar mounting
Equipped with connectors
Rated short-time withstand current lcw
18kA
Version as main switch
Suitable for front mounting
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
