Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V710kW
Version as emergency stop installationNo
Rated short-time withstand current lcw18kA
Type of control elementLong turning handle
Version as safety switchYes
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
With error protectionNo
Equipped with connectorsYes
Suitable for front mountingNo
Suitable for floor mountingNo
Suitable for busbar mountingYes
Motor drive optionalNo
Degree of protection (IP), front sideIP65
Position control elementFront side
Suitable for floor mountingYes
Rated permanent current Iu800A
Number of poles3
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

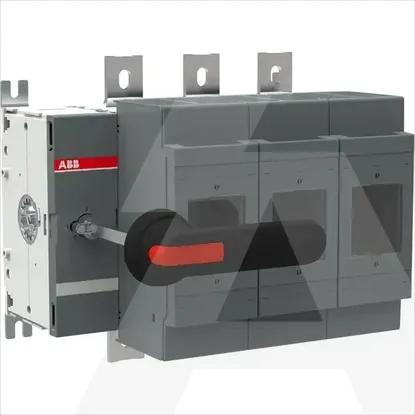

1SCA022825R9920 | OS800L03P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Conditioned rated short-circuit current Iq
80kA
Rated operation power at AC-23, 400 V
710kW
Version as emergency stop installation
Rated short-time withstand current lcw
18kA
Type of control element
Long turning handle
Version as safety switch
Version as main switch
Type of electrical connection of main circuit
Bolt connection
Motor drive integrated
With error protection
Equipped with connectors
Suitable for front mounting
Suitable for floor mounting
Suitable for busbar mounting
Motor drive optional
Degree of protection (IP), front side
IP65
Position control element
Front side
Suitable for floor mounting
Rated permanent current Iu
800A
Number of poles
3
Suitable for fuses
Other
Max. rated operation voltage Ue AC
1000V
