Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Suitable for fusesNH3
Version as safety switchYes
Version as main switchYes
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Rated permanent current Iu720A
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Number of poles4
With error protectionNo
Suitable for busbar mountingYes
Suitable for front mountingNo
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw18kA
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V710kW
Motor drive optionalNo
Equipped with connectorsYes
Position control elementRight
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

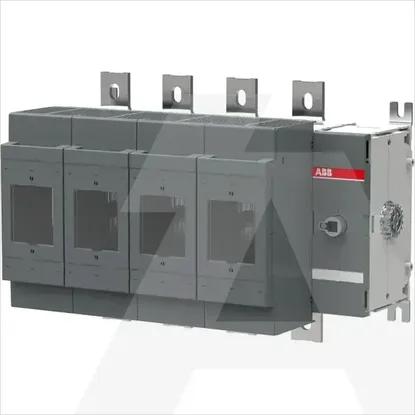

1SCA022834R6650 | OS800D40F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Suitable for fuses
NH3
Version as safety switch
Version as main switch
Version as emergency stop installation
Type of control element
Short thumb-grip
Rated permanent current Iu
720A
Type of electrical connection of main circuit
Bolt connection
Conditioned rated short-circuit current Iq
80kA
Motor drive integrated
Number of poles
4
With error protection
Suitable for busbar mounting
Suitable for front mounting
Max. rated operation voltage Ue AC
1000V
Rated short-time withstand current lcw
18kA
Suitable for floor mounting
Rated operation power at AC-23, 400 V
710kW
Motor drive optional
Equipped with connectors
Position control element
Right
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
