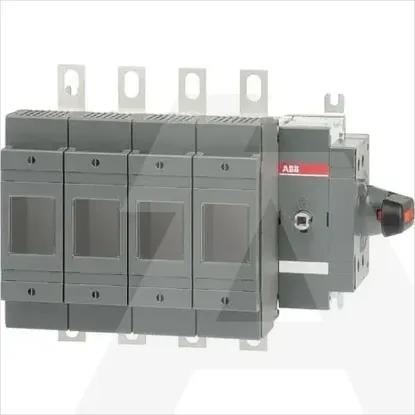

Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles4
Rated permanent current Iu200A
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Rated short-time withstand current lcw8kA
Version as main switchYes
Suitable for fusesNH0
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Rated operation power at AC-23, 400 V200kW
Equipped with connectorsYes
Motor drive optionalNo
Version as safety switchYes
Type of control elementLong turning handle
Suitable for floor mountingNo
Suitable for busbar mountingYes
Position control elementRight
Max. rated operation voltage Ue AC1000V
With error protectionNo
Suitable for front mountingNo
Version as emergency stop installationNo
