Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
Rated operation power at AC-3, 400 V-kW
Rated operating voltage750 - 750V
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Number of switches-
Type of electrical connection of main circuitScrew connection
InterlockableNo
Type of control elementShort thumb-grip
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Suitable for floor mountingNo
Rated short-time withstand current lcw0.5kA
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V7.5kW
Suitable for front mounting 4-holeNo
Version as safety switchNo
Suitable for front mounting centreNo
Motor drive optionalNo
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Rated permanent current at AC-21, 400 V16A
Switching power at 400 V7.5kW
Degree of protection (NEMA)1
Max. rated operation voltage Ue AC750V
Number of poles3
Rated permanent current Iu16A
Version as main switchYes
Suitable for distribution board installationYes
Suitable for floor mountingYes
Rated permanent current at AC-23, 400 V16A
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

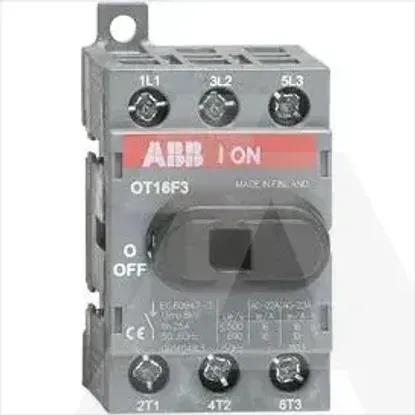

1SCA104811R1001 | OT16F3
